Woods EC Twin Fan 560 – EC560312 – EC Box Fan – Flakt Woods

Woods EC Twin Fan 560 – EC560312 – EC Box Fan – Flakt Woods

£7,057.00
£7,057.00
Tax included. Shipping calculated at checkout.

Expected delivery date:
29 Jan Usually ready in 2-3 days.

Explore tool specifications

Description

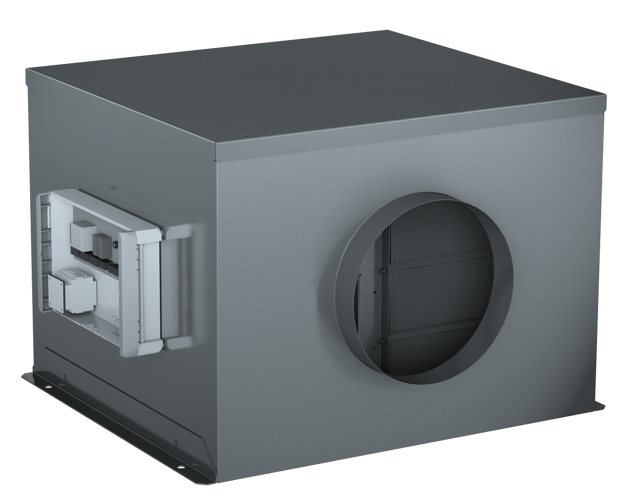

Woods EC Twin Fan 560 – EC560312 – EC Box Fan – Flakt Woods

The Woods EC Box fans are perfect for building services and kitchen extract projects. They are available as Single or Twin (with a stand-by fan) Box Fans which are energy efficient with low sound levels and speed controllable to meet the desired ventilation needs.

  • 50 Hz and 60 Hz applications
  • High efficiency EC motors
  • Plug and play fitted control panel
  • ErP Complaint

The Woods EC box fans can handle volume flow rates up to 3.8 m³/s and static pressure up to 1300 Pa. Galvanised steel cabinets with thicknesses ranging from 0.9mm to 1.2mm, depending on size and model, of standard construction suitable for internal and/or external application. There is also the option available to have them powder coated (on request). The high efficiency backward curved centrifugal impeller is made of steel.

The units are internally lined with 20mm Barafoam ‘O’ class liner, and with 6mm barrier mat layer, which helps to reduce the breakout sound level significantly and lowers the overall sound level.

The box fans can be connected with a range of accessories such as; CFC, inlet/outlet silencers, PIR, potentiometers, etc. The plug and play fitted fan controller can be connected easily with a BMS system; VFC BMS enable, VFC BMS boost, BMS fan fault signal, 0-10V speed control inputs, adjustable duty share (for Twin box fans), run on timer, etc.

The box fans are suitable for mounting in horizontal applications.

  • Volume flow rates up to 3.8 m³/s
  • Static pressure up to 1300 Pa
  • Available in all sizes up to 560 mm
  • Available in 1ph and 3ph options (450 mm and 560 mm sizes only)
  • Operating temperatures up to +60°C
  • ErP compliant
  • Low SFP to help achieve L2 regulations
  • Sound-proof cabinets
  • Compact design

PRODUCT PDF:

EC TWIN FAN
