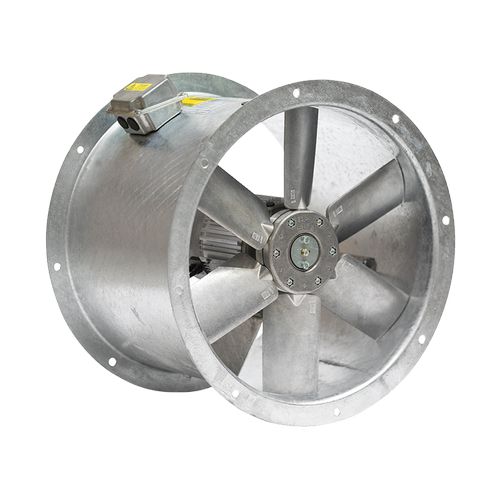

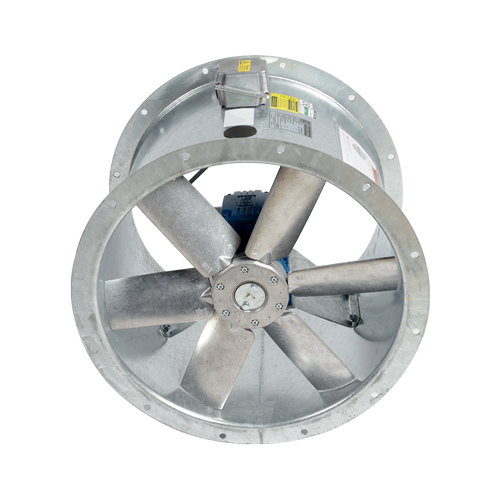

Elta SLC Revolution Axial Fan, 315mm-1000mm, Three Phase

Long Cased Axial Flow Fan

• standard sizes from 315mm to 630mm

• Air volume flow rates up to 19.63 m³/s

• Static pressures up to 994 Pa

• Suitable for operating temperatures up to +60°C (speed control +40°C)

• Available in AC & IE5 EC'

A true industry workhorse, this extensive range offers superb performance characteristics, combined with strength, durability and corrosion resistance for a longer life.

• Product Overview

• Installation and Maintenance

• Product BIM Files

Features and Benefits

Easy Installation

Motors are wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing for ease of electrical connection.

Efficient Performance

High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium. Increased blade chord and twist provides 7% higher efficiency reducing overall energy consumption. Increased blade root reduces stress levels which make our range of impellers ideal for arduous fan applications.

Corrosion resistance

Suitable for external mounting as standard.

Controllability

The Eltadrive range of inverters has been designed encompassing the latest technology and combining robustness with reliability. Using an inverter to control fans via sensors to reduce fan speed can provide significant cost-savings through lower energy consumption.

Warranty

Each SLC has a 12 month warranty.

Specification

Casing

The all metal fan casing provides a long lasting and robust construction. The units have been constructed from a single sheet of steel, with both motor and axial impeller mounted within the length of the unit casing. All casing parts are heavy gauge mild steel sheet, roll formed and welded for added strength and durability, hot dip galvanised to BS EN ISO 1461:2009 after fabrication and drilled to BS ISO 6580:2005 The fans are suitable for external mounting as standard.

Motors

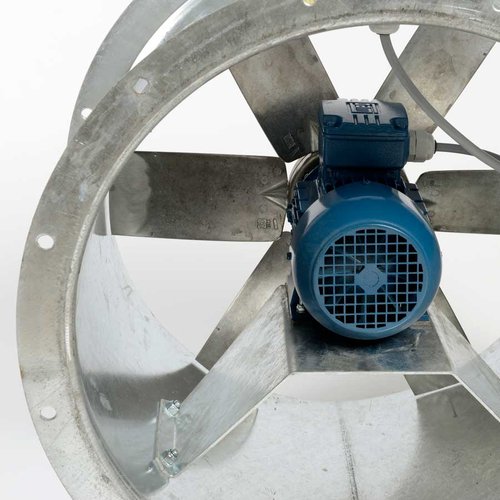

Motors are to be foot mounted totally enclosed metric type to IP55, with sealed for life bearings, standard industrial paint finish and Class F insulation to EN 60034-5, suitable for operating temperatures up to +54°C. Motors are to be wired via a weatherproofed cable to an IP55 protected terminal box mountedon the outside of the unit casing.

Impellers

Adjustable pitch increased twist aerofoil impellers are provided with blades made from high quality pressure die cast aluminium (LM6), natural finish. Impellers are factory set at an angle to provide maximum performance. The hubs are manufactured from die cast aluminium alloy (LM24). Assembled impellers are to be dynamically balanced to ISO 14694 Grade G6.3.

Control

Speed control shall be via stepped Transformer or Eltadrive VSD, dependant on model. Eltadrive VSD IP20 or Switched IP66 shall provide precise motor control and energy savings. The Eltadrive range of inverters have been designed encompassing the latest technology and combining robustness with reliability. Using an inverter to control fans via sensors to reduce fan speed can provide significant cost-savings through lower energy consumption.

Quality Management

Units are to be designed and manufactured with procedures as defined in BS EN ISO 9001. All Revolution SLC units are to be tested to ISO 5801 (airside performance) and BS 848 Part 2 (sound performance).
